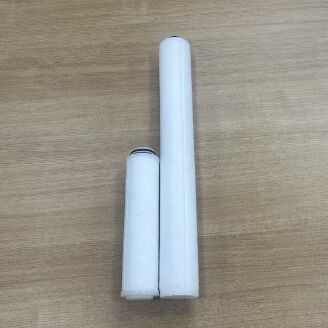

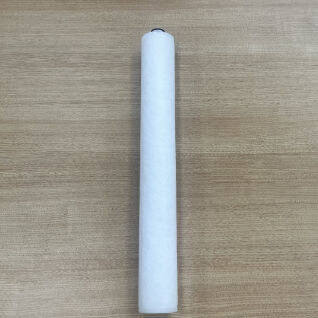

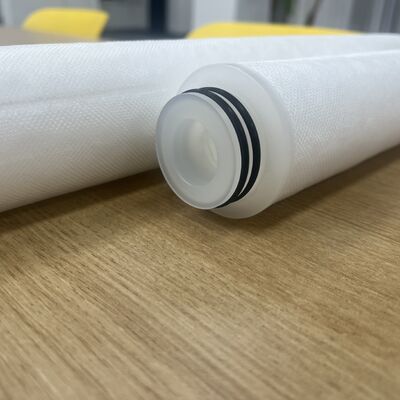

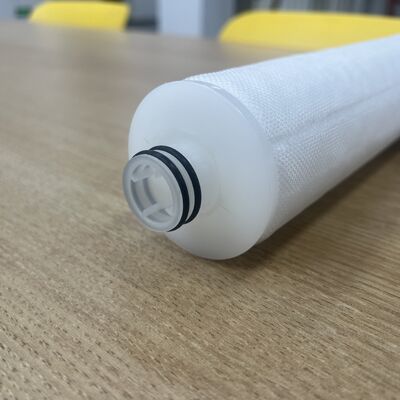

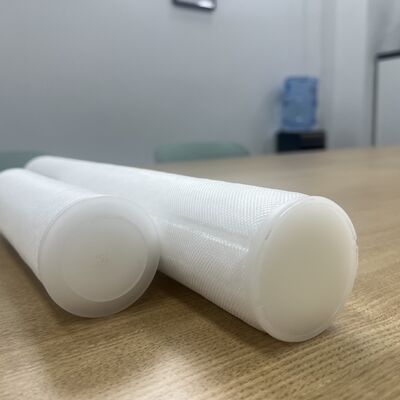

Winding Type Slurry Filter Cartridge
The PHC series filter cartridge employs a multi-layer PP filter material winding structure design, providing precise filtration for high viscosity slurries. It efficiently intercepts impurity particles while allowing effective particles to pass.
- Gradient structure from outside to inside increases dirt holding capacity and filtration efficiency
- Extends the filter cartridge's service life
- Used as the inner core of a saccular filter cartridge for slurry filtration
- Unique cage structure prevents filter material fiber shedding
| Outer diameter |
2.7" (69mm) |
| Length |
10", 20", 30", 40" |
| Removal rating |
10um, 15um, 30um |
| Max. operating temperature |
80℃ |
| Max. operating differential pressure |
4.2 Bar @ 25℃ |
| Max. operating differential pressure (Reverse direction) |
2.1 Bar @ 25℃ |
| Max. temperature sterilization |
30 times, 30 minutes at 121℃ |
| Material Constructions |
| Filter Medium |
PP |
| Support/Drainage |
PP |
| Center core/Outer Cage/End Caps |
PP |
| Seals Material |
NBR, Silicone, EPDM, FKM,PTFE |
Company Profile
Shanghai Pullner Filtration Technology Co.,LTD.
Since: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
China domestic office: Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China.
Global branch and office: UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow).
Certifications
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
